IPX8 Water Tightness Pressure Tester

Name: IPX8 Water Tightness Pressure Tester
Brand: KINGPO
Price: 1 USD

Buy cheap IPX8 Water Tightness Pressure Tester product

Brand Name : KINGPO

MOQ : 1

Certification : calibration certificate

Place of Origin : China

Price : To be quoted

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 25 working days

Packaging Details : safety wooden box

water tank : Stainless steel

tank height : 1m

tank diameter : 0.8m

pressure range : 0 ~ 6bar

Pressure gauge accuracy : 0.25 degree

test time : 0-99min

Contact Now

Product Details

Product Introduction

The IPX8 Water Tightness Pressure Tester is manufactured in accordance with the standard of Clause IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1. It is used to assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Technical Parameter

Pressure vessel	Stainless steel tank, diameter 0.8 meter, height 1 meter
Pressure adjustment range	0 ~ 6bar (can be customized)
Pressure system	Stainless steel pump + frequency converter
Pressure gauge accuracy	0.25 degree, range: 10bar
Testing time	0-99min
Maximum limit pressure	6 bar
Pressure protection	Pressure switch protection
Connect to the water supply equipment by 3/4 high pressure steel wire hose connection

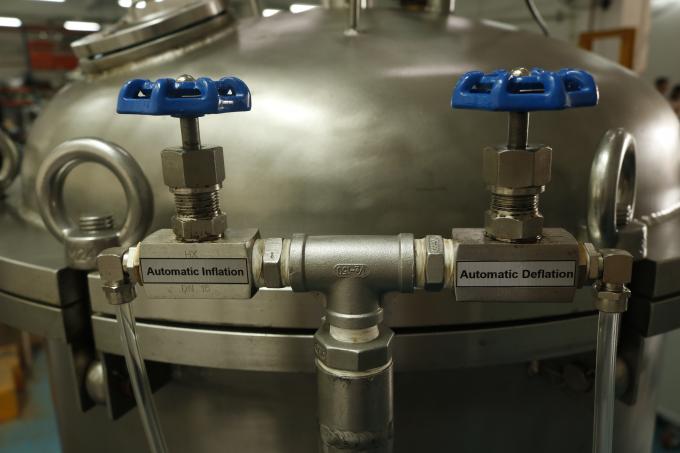

Picture for reference
