Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.
Application
It is used for the testing of IPX1 and IPX2. Mainly used in lighting, household appliances, industrial electrical, communication cabinets, auto parts, mobile intelligence and other fields.
Features
1. The outer frame of the test machine is made of high-quality aluminum alloy, and the turntable is made of SUS304 stainless steel, which has high corrosion resistance.
2. 7-inch color touch screen + Panasonic PLC system, sample on and off can also be controlled by the system, and added remote control function.

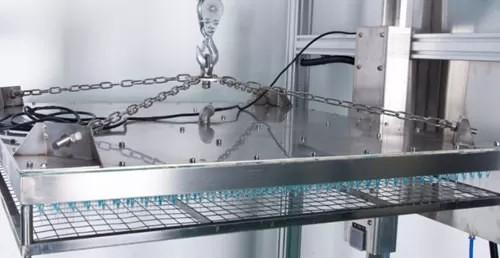

3. The electric hoist is small in size and has a large bearing capacity. The drip tank was adjustable, The use of advanced automated lifting technology eliminates the hassle of manually placing samples.
4. The rack was removable.
Parameters:
| Model | HC-IPX12B-800 | HC-IPX12B-1000 |
| Drip test area | 800x800mm | 1000x1000mm |
| Outer dimension | 1700x1300x2400mm |
| Drip hole diameter | Φ0.4mm |
| Distance between holes | 20mm |
| Rotary table | Diameter:Φ600mm/800mm；Rotating speed1r/min. Load bearing≤50kg |
| Table tilting angle | 0/15° adjustable |
| Dripping rate (Water flow) | 1-5mm/min(±0.5mm/min) |
| Flow regulation mode | Manual regulation |
| Dripping tank elevation | 1000-1800mm |
| Turntable elevation | Immovable (fixed) |
| Input power | Single-phase AC220V,50Hz (customizable),1.0kW |
| Protector | Leakage protection, short circuit protection, water shortage protection |
