Product information:

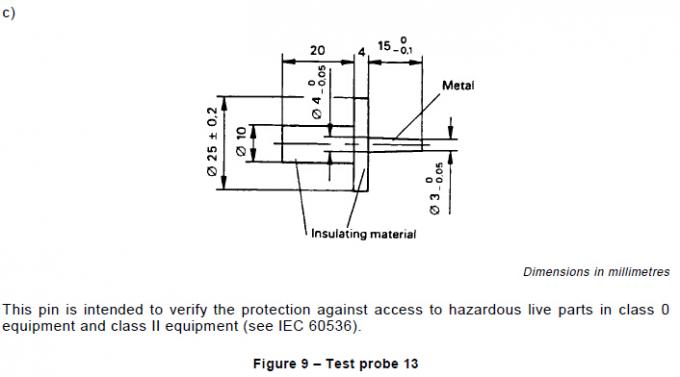

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.
Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Standard:IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065.
Application:This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical parameters:
| Model | HT-I09 |
| Name | Short test pin probe |
| Metal pin tip diameter | Ф3(0,-0.05) |
| Metal pin tail diameter | Ф4(0,-0.05) |
| Metal pin length | 15(0, -0.1) |
| Baffle diameter | Ф25±0.2 |
| Baffle thickness | 4 |
| Handle diameter | Ф10 |
| Handle length | 20 |
IEC61032 test standard: Protection of persons and equipment by enclosures-Probes for verification
Protection of persons and equipment by enclosures-Probes for verification
